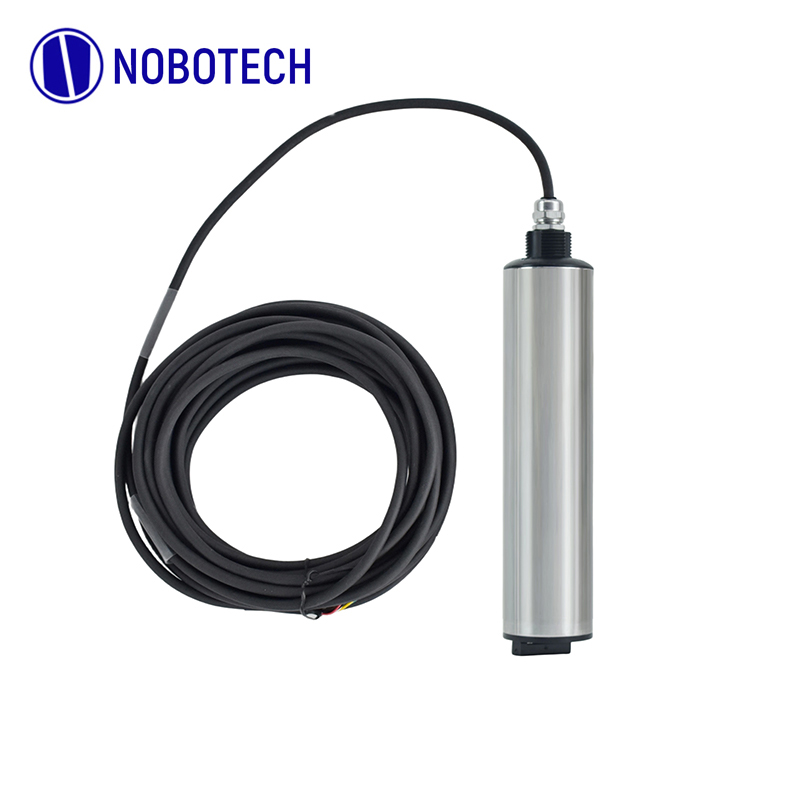

Industrial Multiprobe Chlorophyll Sensor For Sea Water Online Monitoring Digital Watertreatment Chlorophyll Sensor

The chlorophyll digital sensor is a device developed by our company to monitor chlorophyll-a levels in water bodies in real time. Chlorophyll-a, a key pigment for photosynthesis in phytoplankton such as algae, possesses fluorescence excitation properties. This sensor employs optical measurement methods, eliminating the need for chemical reagents and avoiding secondary pollution. It can rapidly reflect changes in algal concentration in water bodies, serving as a core monitoring tool for assessing water eutrophication levels and warning against harmful algal blooms.

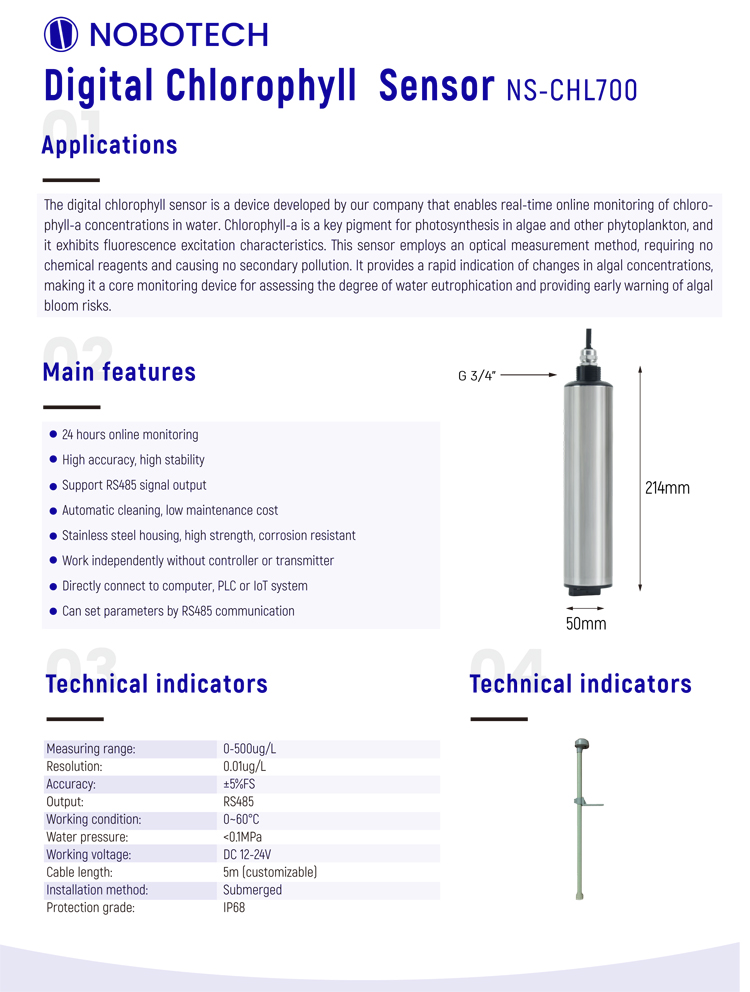

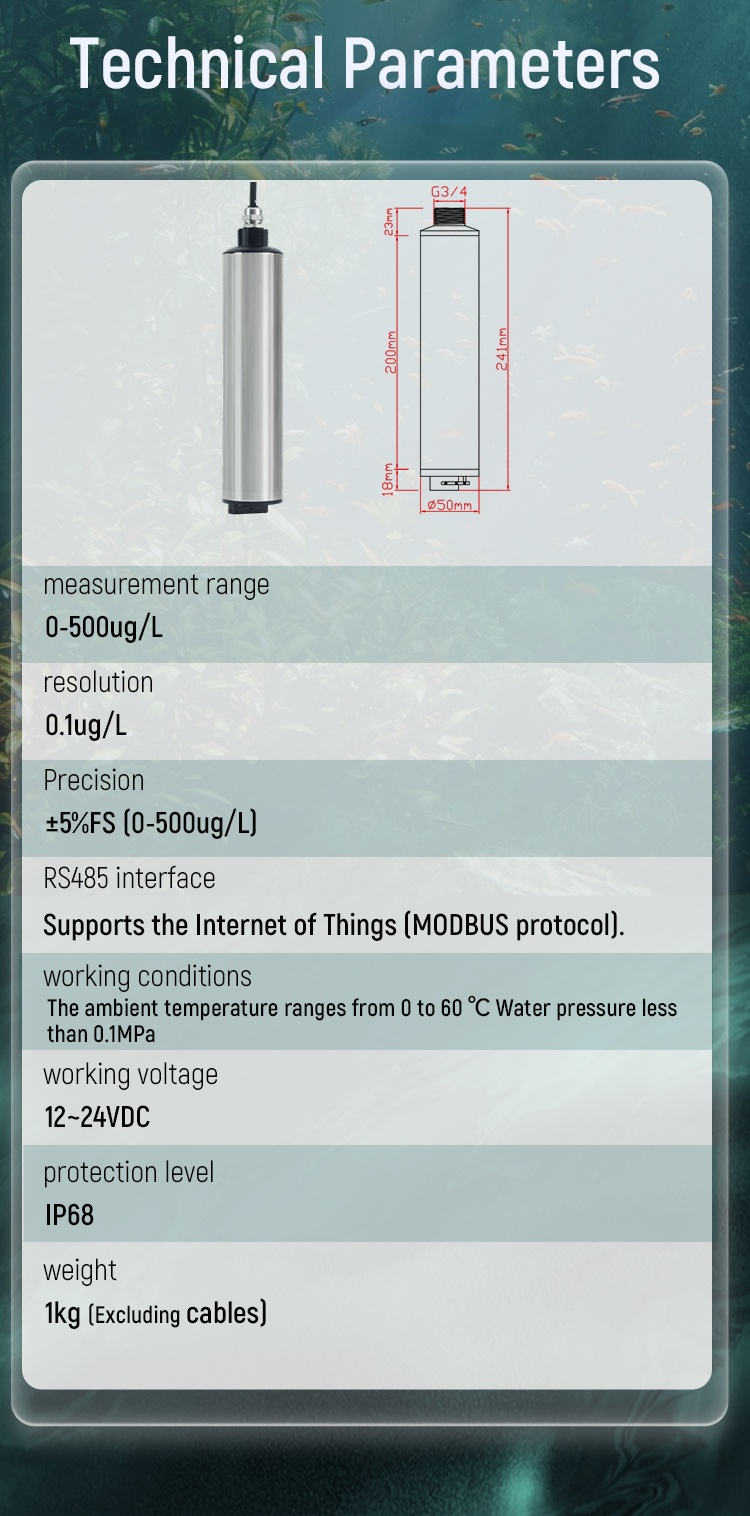

(1) Measurement range: 0-500ug/L
(2) Resolution: 0.01ug/L
(3) Accuracy: ± 5% FS (0-500ug/L)
(4) RS485 interface: Supports IoT (MODBUS protocol).
(5) Working conditions: The ambient temperature is 0-60 ℃, and the water pressure is less than 0.1MPa
(6) Working voltage: 12~24VDC
(7) Protection level: IP68
(8) Weight: 1kg (without wire)

Main Features
This product is a chlorophyll digital sensor that can directly output RS485 signals.
◇ No need for chemical reagents, no secondary pollution, and fast measurement.
◇ Automatic cleaning function, reducing maintenance costs.
Stainless steel shell, high strength, corrosion-resistant.
Without the need for instruments, it can directly connect to devices with RS485 signal interfaces such as computers and PLCs for data acquisition. Facilitate users to integrate sensors into industrial control environments such as upper computer systems and IoT systems.
◇ Use a mobile app to collect, debug, and maintain data from sensors through wired (OTG cable and 485 to USB module) or wireless networks (such as WIFI, GPRS, etc.).
The sensor can be configured through RS485 communication, including slave address and baud rate, online calibration, and factory reset settings.
◇ Adopting multi-point calibration method, up to 5 points can be calibrated.
