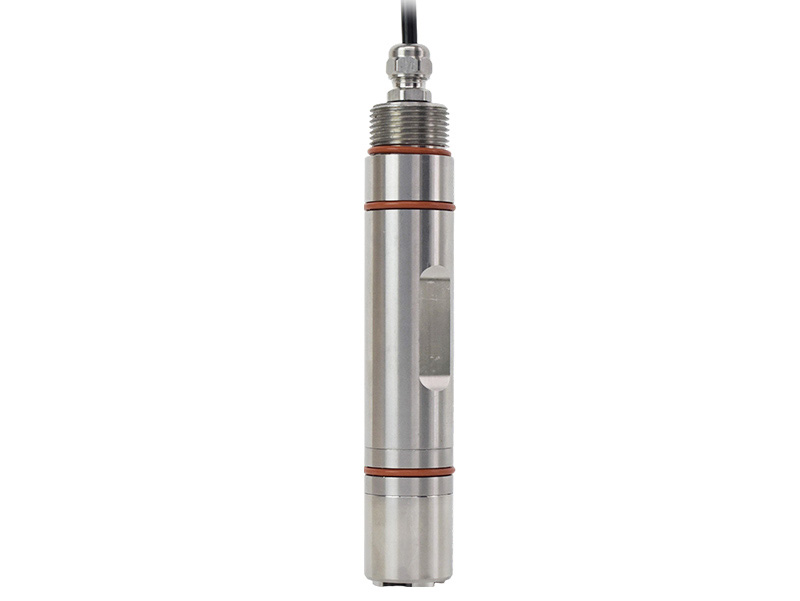

Digital dissolved oxygen sensor NS-DO104

Digital dissolved oxygen sensor NS-DO104

Number：NS-DO104
Price：0.00
Hits：461
Time：2023-04-06 11:43:06
Description

Digital dissolved oxygen sensor  NS-DO104 fishing water DO testing
Product Introduction

The Galvanic Cell method dissolved oxygen digital sensor is a new generation of intelligent water quality detection digital sensor independently developed by Nobotech. It can check, calibrate, maintain through mobile phone or computer. It’s easy to maintenance, with high stability and good repeatability. Its’ function it to test the DO value and temperature of liquid. It is widely used in waste water treatment, purified water, circulating water, boiler water and other systems as well as continuous monitoring of dissolved oxygen values in solutions such as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceutical, fermentation, chemical and other farming and tap water.

Dissolved oxygen sensor  NS-DO104 fishing water DO testing
Main Feature

  • This product is a DO digital sensor, which can directly output RS485 signal and 4~20mA signal.
  • The product has high precision, high stability and strong anti-interference ability.
  • Automatic temperature compensation.
  • No need for instrumentation, can directly connect to computers, PLC and other devices with RS485/4-20mA signal interface for data acquisition and maintenance; it is convenient for users to integrate sensors into the industrial computer system such as PC system and IOT.
  • The sensor can be set by RS485 communication, slave address and baud rate, online calibration, factory reset, 4-20mA output corresponding range , proportional coefficient and incremental compensation.
  • Two-point calibration method is used.
  • Power off protection > 10 years.

Digital dissolved oxygen sensor NS-DO104 fishing water DO testing
Technical Indicators

  • Measurement range: 0～20.0 mg/L, 0~60.0°C
  • Precision: dissolved oxygen: ± 1% FS, temperature: ± 0.3 ° C
  • Stability: ≤0.1mg/L 24h
  • Temperature compensation: 0～60°C
  • 485 interface: support IOT, (partially compatible with MODBUS protocol).
  • Working conditions: ambient temperature is 0-60 ° C
  • Input impedance: ≥1×1012Ω
  • Output load: 4-20mA load <750Ω (optional)
  • Working voltage: DC 5V/12V/24V
  • Protection rating: IP68

Tags：Digital dissolved oxygen sensor
