Optical dissolved oxygen sensor probe

Optical dissolved oxygen sensor probe

Number：NS-DO105
Price：0.00
Hits：434
Time：2023-04-06 11:49:01
Description

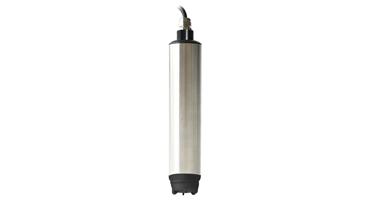

Optical dissolved oxygen sensor probe NS-DO105 water dissolved oxygen tester
The dissolved oxygen sensor measures the dissolved oxygen by the fluorescence method, and the emitted blue light is irradiated on the phosphor layer. The fluorescent substance is stimulated to emit red light, and the oxygen concentration is inversely proportional to the time when the fluorescent substance returns to the ground state. By using this method to measure the dissolved oxygen, it will not produce oxygen consumption, thus assuring data stability, reliable performance, no interference, and simple installation and calibration.

Optical dissolved oxygen sensor probe NS-DO105 water dissolved oxygen tester


Specifications Details
Power 12VDC
Weight 1.4KG
Materials SUS316L + PVC（common version），Titanium alloy（seawater version）
O-ring：fluororubber
Cable：PVC
Waterproof Rate IP68/NEMA6P
Measurement Range 0-20mg/L(0-20ppm) （The range can be customized）
Temperature：0-45℃
Measurement Accuracy Measured value±3%
Temperature：±0.5℃
Storage Temperature -15~60℃
Measure ambient temperature 0~45℃
Pressure range ≤0.3Mpa
Calibration Air automatic calibration
Samples calibration
Zero calibration
Cable Length Standard: 10M, can be customized
Tags：Optical dissolved oxygen sensor
