Online Acid-Base Concentration Analyzer

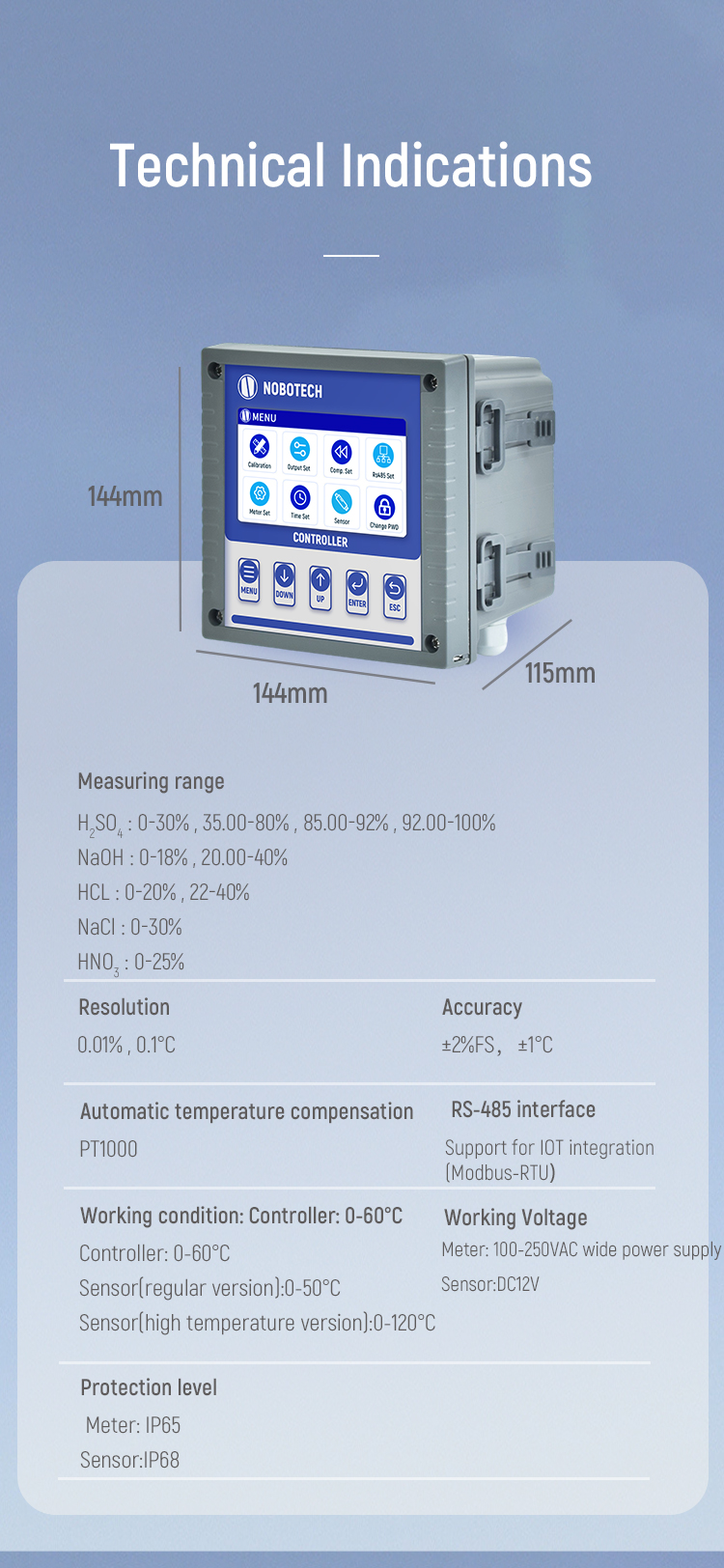

Technical parameters:
Measurement range:
Sulfuric acid: 0-30%; 35.00-80%; 85.00-92%; 92.00-100%
Sodium hydroxide: 0-18%; 20.00-40%
Nitric acid: 0-25%
Hydrochloric acid: 0-20 percent; 22-40 percent
Sodium chloride: 0-30%
Resolution: 0.01%, 0.1°C
Accuracy: ±2%FS
Automatic temperature compensation: 0-100 ℃ temperature compensation NTC 10K
RS485 interface: support IOT (MODBUS protocol)
Working conditions: ambient temperature of 0 ~ 60 ℃ water pressure less than 0.1MPa
Working voltage: DC 12V
Protection grade: IP68
Weight: 1kg (without cable)
