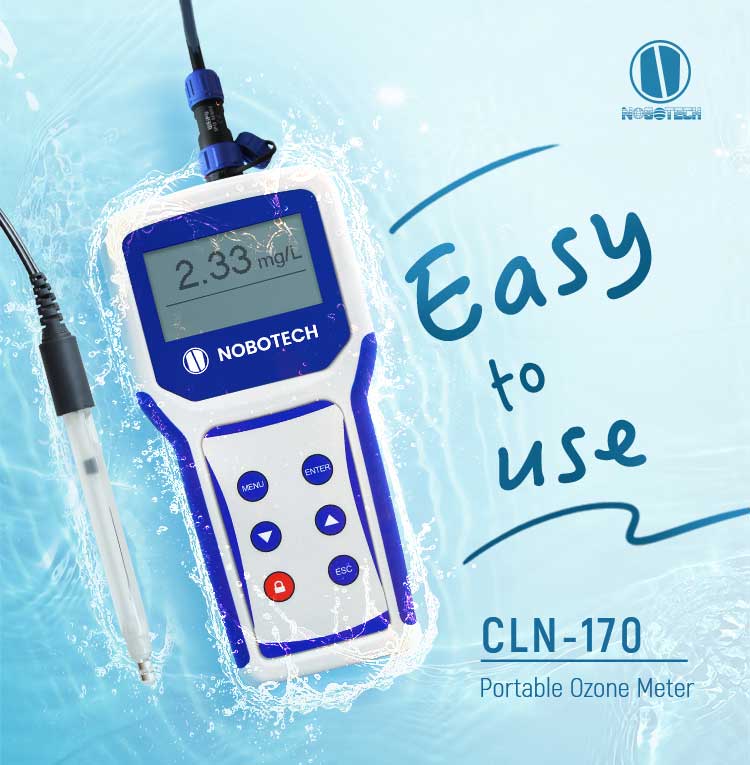

NOBOTECH Portable dissolved ozone measuring device CLN-170 potable water ozone meter
Product introduction

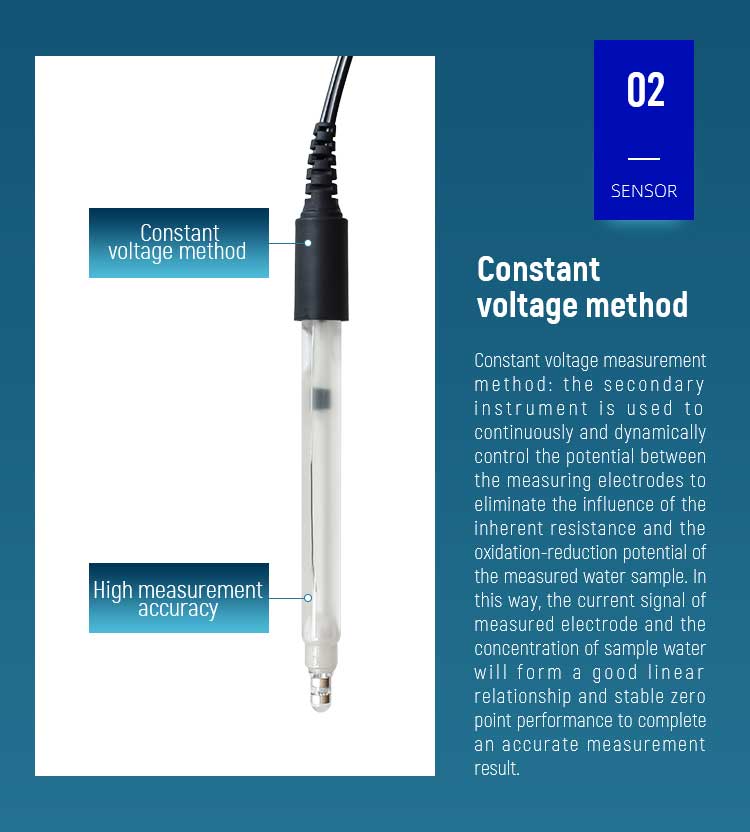

Ozone meter is a microcomputer type on-line measurement and control device for ozone in water. It adopts advanced non-membrane constant voltage sensor, no need to replace the diaphragm and solution. It has high sensitivity, fast signal response, accurate measurement, stable performance and simple maintenance.The water ozone measurement and control system has the characteristics of convenience, high accuracy and economy.This series of advanced analytical techniques are used to ensure the stability, reliability and accuracy of the instrument in its long-term operation. It has English menu operation, 485 communication and other functions.
It is used for continuous monitoring and control of ozone content in water treatment plants, canning plants, drinking water distribution networks, swimming pools, cooling and circulating water, water treatment projects, etc.
portable dissolved ozone meter Pure water CLN-170 potable water ozone meter
Main features

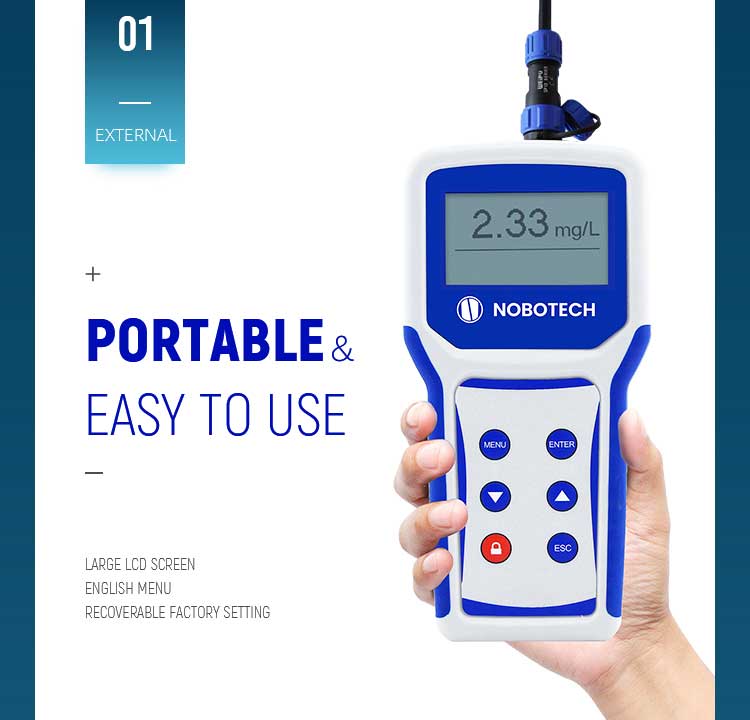

Large screen LCD display, support English menu.
Built-in microprocessor chip, automatic/manual temperature compensation, sensor response speed.
Notebook: It can store 50 measurement data, users can record measurement data as needed.

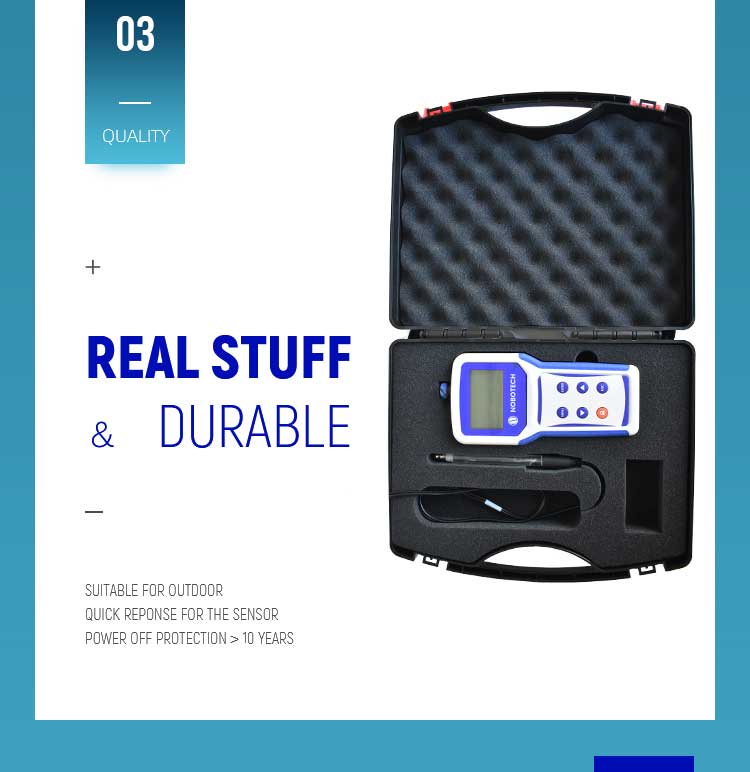

Configure the suitcase,suitable for use in the field and on the spot.
Capable for factory reset.
Watchdog function: make sure the meter doesn't crash.
Power off protects > 10 years.
Protection level: IP57
Portable dissolved ozone meter Pure water CLN-170 potable water ozone meter

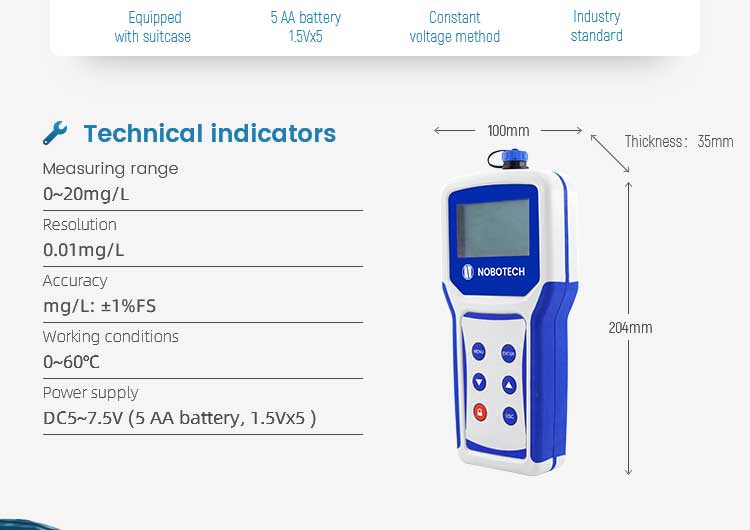

Technical indicators
Measuring Range: 0～20.00 mg/L
Resolution: 0.01mg/L
Accuracy：±2%FS
Working Conditions:Ambient temperature is 0~60°C，relative humidity ≤90%
Power supply: AA battery 5 sections (1.5V × 5)
Size and weight: Instrument: (204×100×35)mm/0.4kg；Suitcase: (340×270×80)mm/0.5kg
Protection level: IP57
