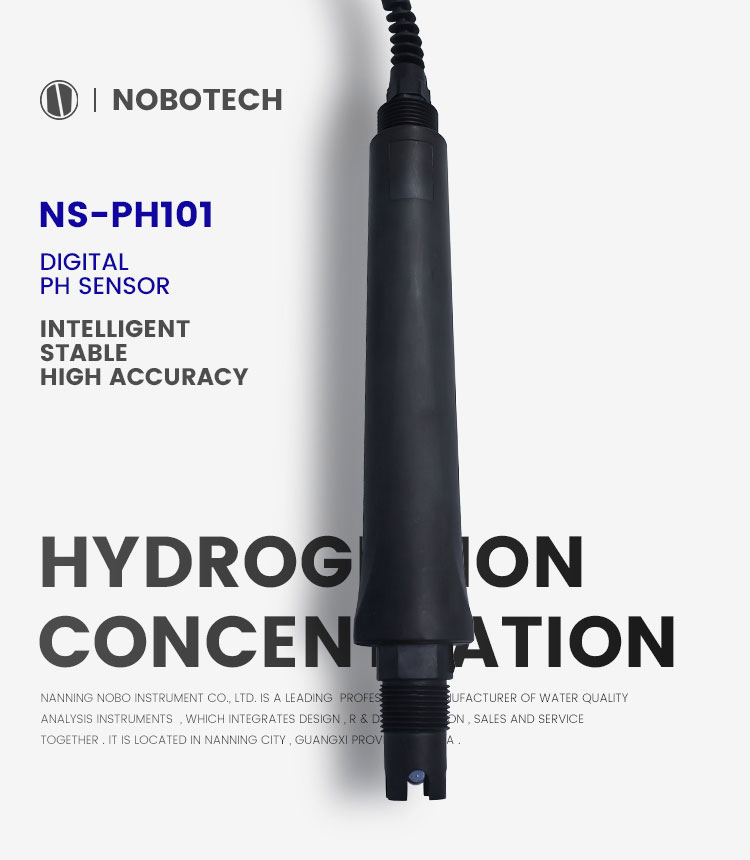

Digital pH sensor Tester in waste water NS-PH101 Intelligent pH sensor RS485
Product configuration
Digital PH sensor is a new generation of intelligent water quality monitoring digital sensor developed by our company.The data can be viewed, debugged and maintained through mobile APP or computer. It has several advantages, such as simple maintenance, high stability, excellent repeatability and multi-function. It can accurately measure PH value and temperature value in solution. It is widely used in the system of waste water treatment, purified water, circulating water and boiler water,as well as the PH test in the fields of electronics, aquaculture, food, printing and dyeing, electroplating, pharmacy, fermentation, chemical industry, etc, and it has a strong function in the environmental monitoring of surface water and pollution discharge and the remote system application.
Digital pH sensor Tester in waste water NS-PH101 Intelligent pH sensor RS485
Main features
★ This product is digital PH sensor, which can directly output RS485 signal
★ The product has high accuracy, high stability and strong anti-interference ability.
★ Automatic temperature compensation function.
★ Without controller, it can directly connect computer, PLC and other equipment with RS485 signal interface for data acquisition and maintenance.It is convenient for users to integrate sensors into the industrial control environment such as upper computer system and IoT.
★ Use mobile APP to collect, debug and maintain the sensor data through wired (OTG line and 485 to USB module) or wireless network (such as WIFI and GPRS).
★ The sensor can be set with RS485 communication for its slave address, baud rate, online calibration, factory reset, proportional coefficient, incremental compensation and other settings.
★ Two point correction is used.
Digital pH sensor Tester in waste water NS-PH101 Intelligent pH sensor RS485
Technical indicators
★ Measuring Range:0.00-14.00PH, 1-100.0℃
★ Accuracy: ±0.02 PH, ±0.3℃
★ Stability: ≤0.01PH/24h
★ Temperature compensation: 0-99.9℃(PH) PT1000
★ 485 Interface: support for Internet of things (partial compatibility of MODBUS protocol)
★ Working conditions: temperature of 0 ~ 60 ℃
★ Input impedance: ≥1×1012Ω
★ Working voltage: DC5V
★ Protection grade: IP68
★ Weight: 0.5kg
