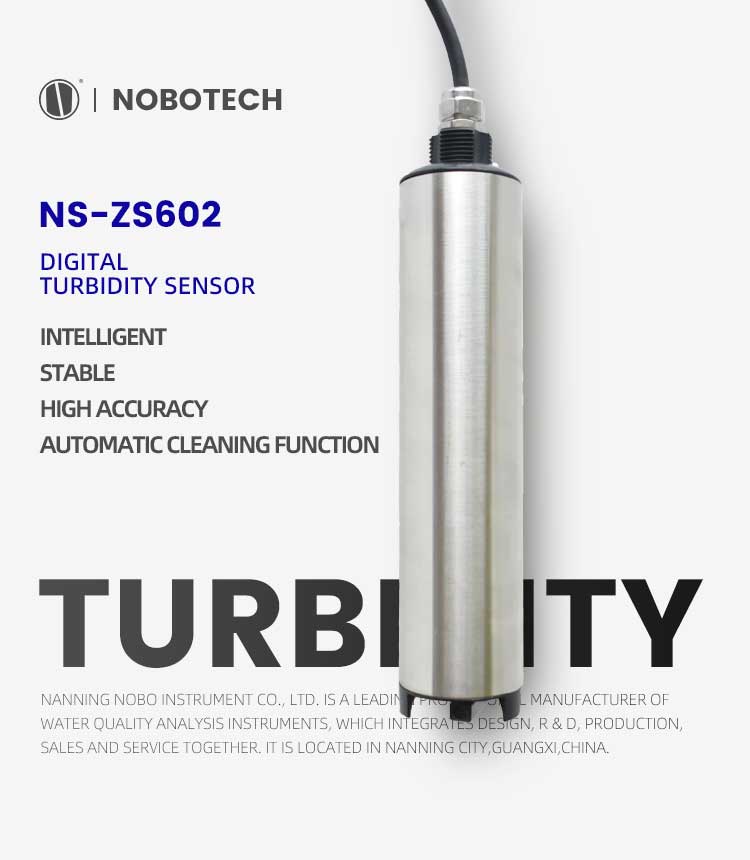

Digital turbidity sensor in tap water NS-ZS602 water quality turbidity sensor
Product introduction：
The soil contains mud, silt, fine organic matter and other microorganisms and colloids to give turbidity in the water.The turbidity sensor is a sensor that detects the turbidity value of a water by using the degree of hindrance that occurs when suspended matter in the water passes through the light.After the infrared light wave transmitted by the transmitter on the sensor is absorbed, reflected and scattered by the measured object during transmission, a part of the transmitted light can be irradiated to the detector in the 180° direction, and the intensity of the light received on the detector is measured and measured. The turbidity of sewage has a certain relationship, so the turbidity of sewage can be calculated by measuring the intensity of transmitted light. It is widely used in the monitoring of turbidity values in chemical, electroplating, paper making, environmental water treatment engineering, pharmaceutical, food, tap water and other solutions. Especially suitable for use in the field and on the spot.
Digital Turbidity Sensor in tap water NS-ZS602 water quality turbidity sensor
Main features：
This product is a submersible turbidity digital sensor, which can directly output RS485 signal and 4~20mA signal;
The shell is made of 316L stainless steel and has good corrosion resistance.
The transmitted light adopts a stable invisible near-monochromatic infrared light source, which avoids the interference of the chromaticity of the liquid and the visible light of the outside to the sensor measurement; and the built-in photometric compensation improves the measurement accuracy.
The use of quartz glass lenses with extremely high transmittance on the optical path makes the emission and reception of infrared light waves more stable.
Wide range of measurement, stable measurement, high precision, good reproducibility, not affected by sample flow rate and pressure

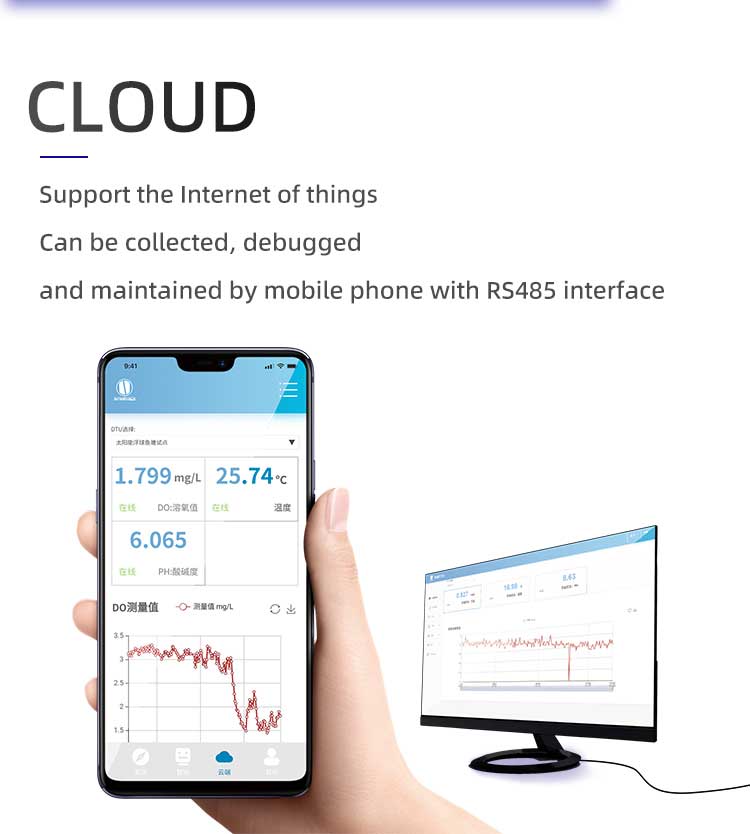

Communication function: two optical isolation signal output, namely RS-485 communication interface (partially compatible with MODBUS-RTU protocol), the communication interval is up to 50ms; and 4~20 mA current output, 4-20mA can be reverse output; no need The instrument can directly connect to computers, PLCs and other devices with RS485/4-20mA signal interface for data acquisition. It is convenient for users to integrate the sensor into the industrial control environment such as the upper computer system and the physical connection system.
The sensor can be set by RS485 communication, slave address and baud rate, online calibration, factory reset, 4-20mA output corresponding range, modified range, proportional coefficient and incremental compensation.
Three-point correction.
Watchdog function: make sure the meter doesn't crash.
Power off protects > 10 years.
Digital turbidity sensor in tap water NS-ZS602 water quality turbidity sensor
Technical indicators：
Measuring Range: 0-10000NTU, measurement range can be customizable.
Accuracy: ±1.0%FS
Repeatability : ±1.0%
Signal output: equipped with RS485 communication (partially compatible with MODBUS-RTU protocol) and 4~20mA signal output, all of which are optocoupler isolation protection
Working conditions: Ambient temperature is 0~60°C, Withstand voltage is ≤0.6MP
Output load: <300Ω（4-20mA）
Working voltage: DC 12V±10%
Size: Length 237mm, maximum outer diameter 64mm
Installation method: submerged
Mounting thread: G1 inch pipe thread
Weight: 0.2kg
Protection level: IP68
